Ivanhoe IV (E1528-10)

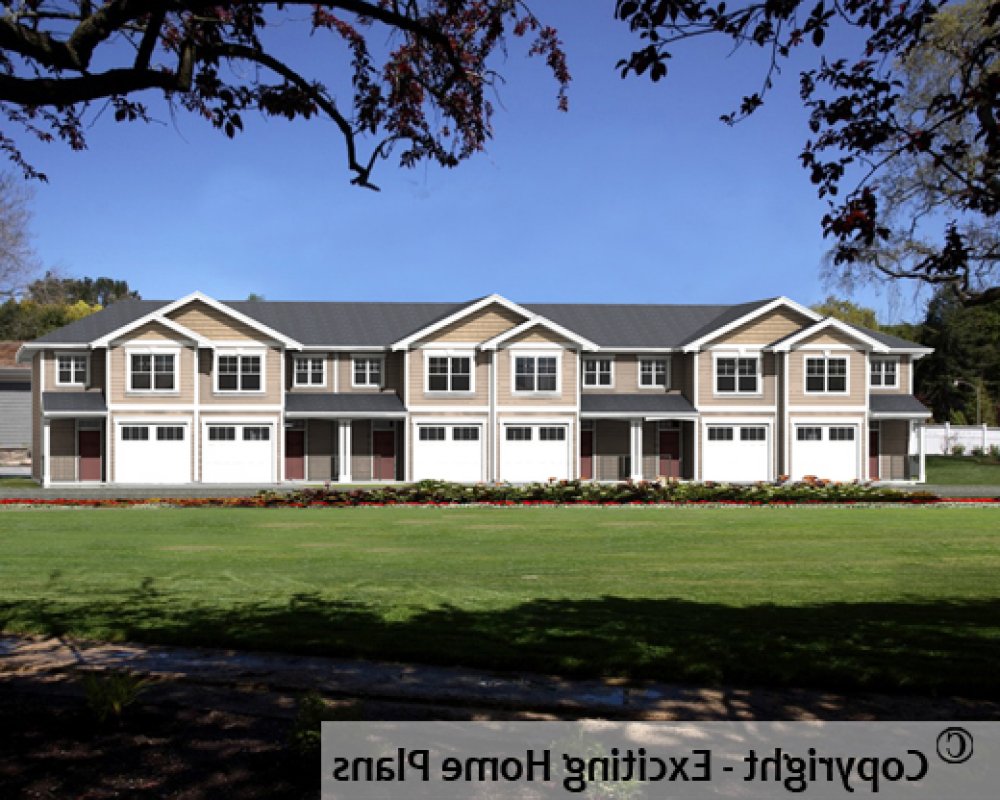

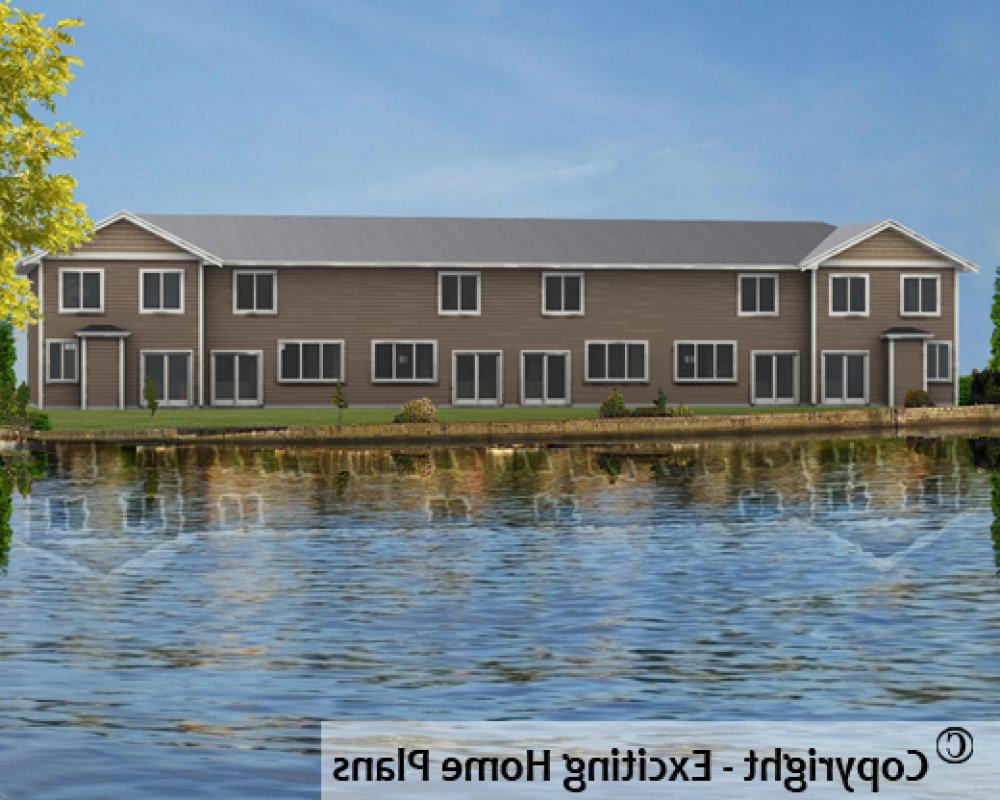

The Ivanhoe IV is a 6-plex building, incorporating a 3 bedroom and a 2 bedroom two storey unit design. Exciting Home Plans offers Multi-Family Designs, Multi-Family Home Site development, working in association with professional architectural and structural engineering, for a complete project design service.
Contact us for project information.
Standard
Plan
Plan
Click thumbnails to see larger image below

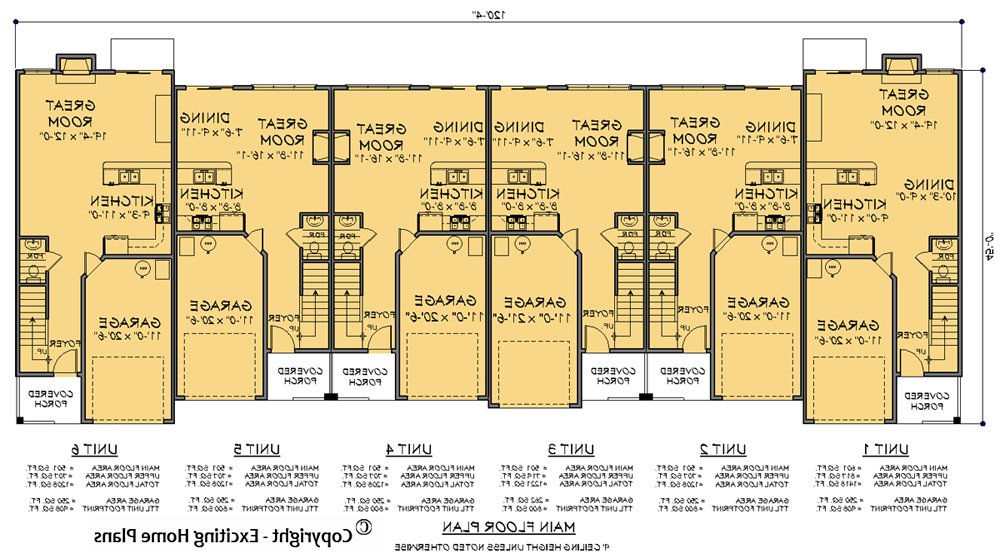

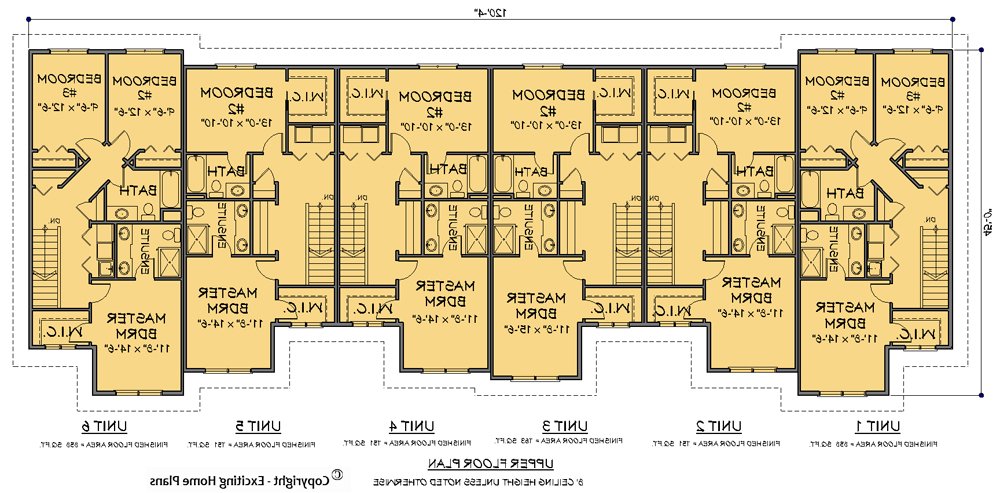

Plan in
Reverse
Reverse
ORDER THIS HOUSE PLAN RELATED HOUSE PLANS
Floor Plan Details
- MULTIFAMILY UNITS:
- AREAS, HOUSE DEPTH AND HOUSE WIDTH NOTED ARE TOTAL BUILDING EXTERIOR DIMENSIONS
- Total Bedrooms:
- 14
- # of Bedrooms on Upper Floor:
- 14
- Bathrooms:
- 12
- Half Bathrooms:
- 6
- Main Floor Sq Ft:
- 3106
- Upper Floor Sq Ft:
- 4732
- House Width (Ft):
- 121
- House Depth (Ft):
- 47
Room Details
- MULTIFAMILY UNITS:
- ROOM SIZES NOTED HERE ARE PER EACH INDIVIDUAL UNIT
- Great Room:
- 11'-8 X 16'-1 Main
- Kitchen:
- 8'-8 X 8'-0 Main
- Dining Room:
- 7'-6 X 9'-11 Main
- Laundry:
- 6'-0 X 3'-6 Upper
- Deck / Patio 1:
- 8'-0 X 5'-8
- Master Bedroom:
- 11'-8 X 14'-6 Upper
- Bedroom 2:
- 13'-0 X 10'-10 Upper
- Bedroom 3:
- 9'-6 X 12'-6 Upper
- All Bedrooms Have A Bathroom:
- No
- Master Bathroom:
- 8'-4 X 7'-0 Upper
- Bathroom 2:
- 8'-4 X 5'-8 Upper
- Bathroom 3:
- 9'-8 X 6'-8 Upper
Kitchen Options
- Open Plan:
- Yes
Living Style Options
- Great Room Concept / Open Plan:
- Yes
Interior Details
- Great Living Room Fireplace:
- Yes
- Steam Room:
- No
- Skylight(s):
- No
- Hot Tub:
- No
- Sauna:
- No
Master Bedroom Options
- Pieces In Ensuite:
- 4
- Walk-In Closet:
- 1
Garage Options
- Garage Size:
- 11'-0 X 20'-6
- Number of Vehicles:
- 1
- Front Load:
- Yes
Ceiling Options
- Main Floor Ceiling Height:
- 9
- Upper Floor Ceiling Height:
- 8
Lot Details
- Flat Lot (Less Than 36" Slope):
- Yes
Construction Details
- Framing Lumber:
- 2x6
- Roof:
- Asphalt
- Foundation:
- Slab on grade
- Wall Finish:
- Siding
Suite Options
- Suites:
- 6
- Kitchen:
- Yes
- Dining Room:
- Yes
- Living Room:
- Yes
- Garage Entrance:
- Yes
- Separate Exterior Entry:
- Yes
- Exterior Patio:
- Yes
Plan Permit Info
Plan Costs
- Planbook 5 Print Sets 24x36 - ¼" Scale Copies:
- $1,500.00
- Planbook 8 Print Sets 24x36 - ¼" Scale Copies:
- $1,750.00
- Planbook purchase with PDF's:
- $2,000.00
- Extra 24x36 ¼" Scale Copies:
- $75.00
- Reverse Plan:
- $350.00
- Colour Rendering:
- $250.00
- 11" x 17" - 1/8" Scale Copy:
- $25.00
- Shipping within B.C.
- $29.95
- Shipping within Canada:
- $50.00
- Shipping to USA:
- Please Ask For Quote
- Shipping outside of North America:
- Please Ask For Quote
- Shipping Mounted Renderings:
- Please Ask For Quote
