Williamsburg II (E1564-10)

Floor Plan Details

• MULTIFAMILY UNITS:
• AREAS, HOUSE DEPTH AND HOUSE WIDTH NOTED ARE TOTAL BUILDING EXTERIOR DIMENSIONS
• Total Bedrooms:
• 6
• Bathrooms:
• 4
• Half Bathrooms:
• 2

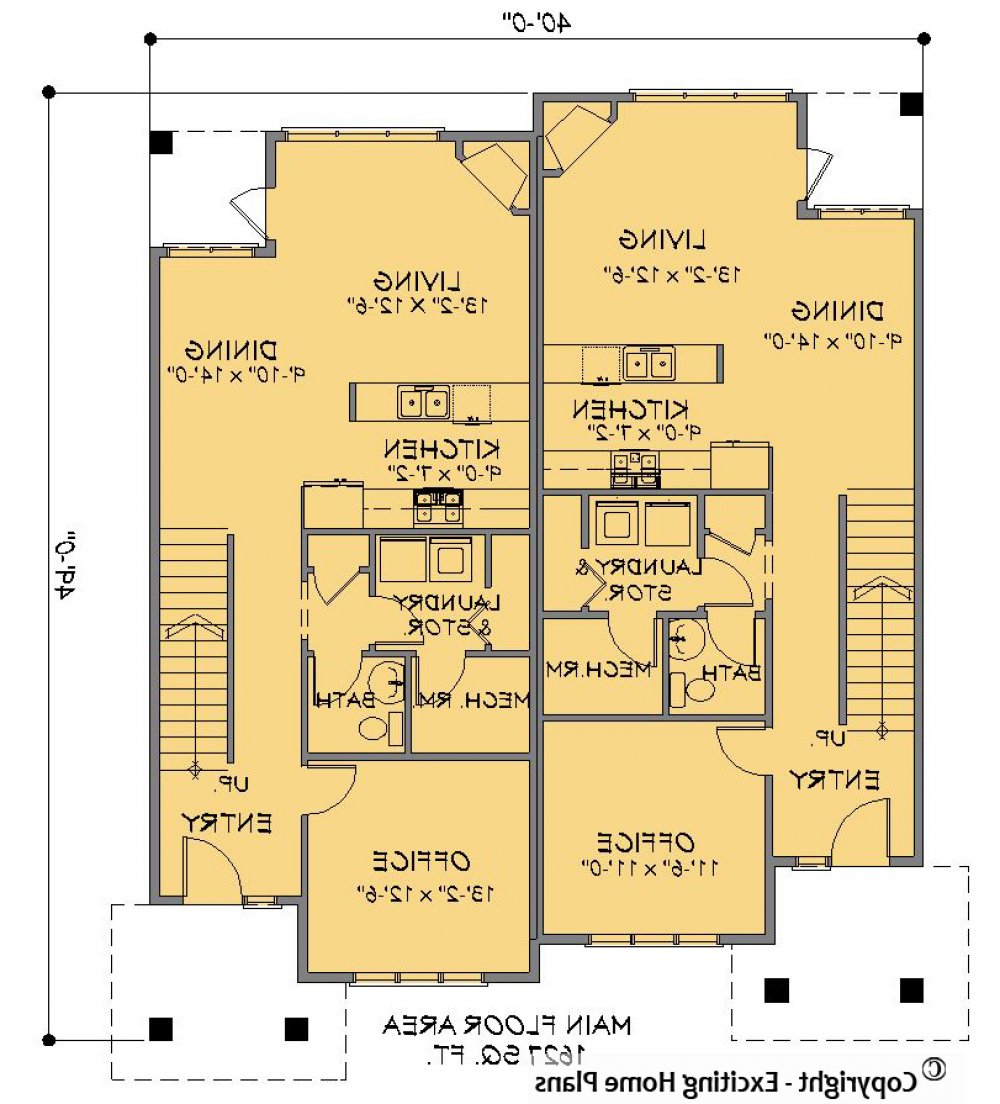

• Main Floor Sq Ft:
• 1628

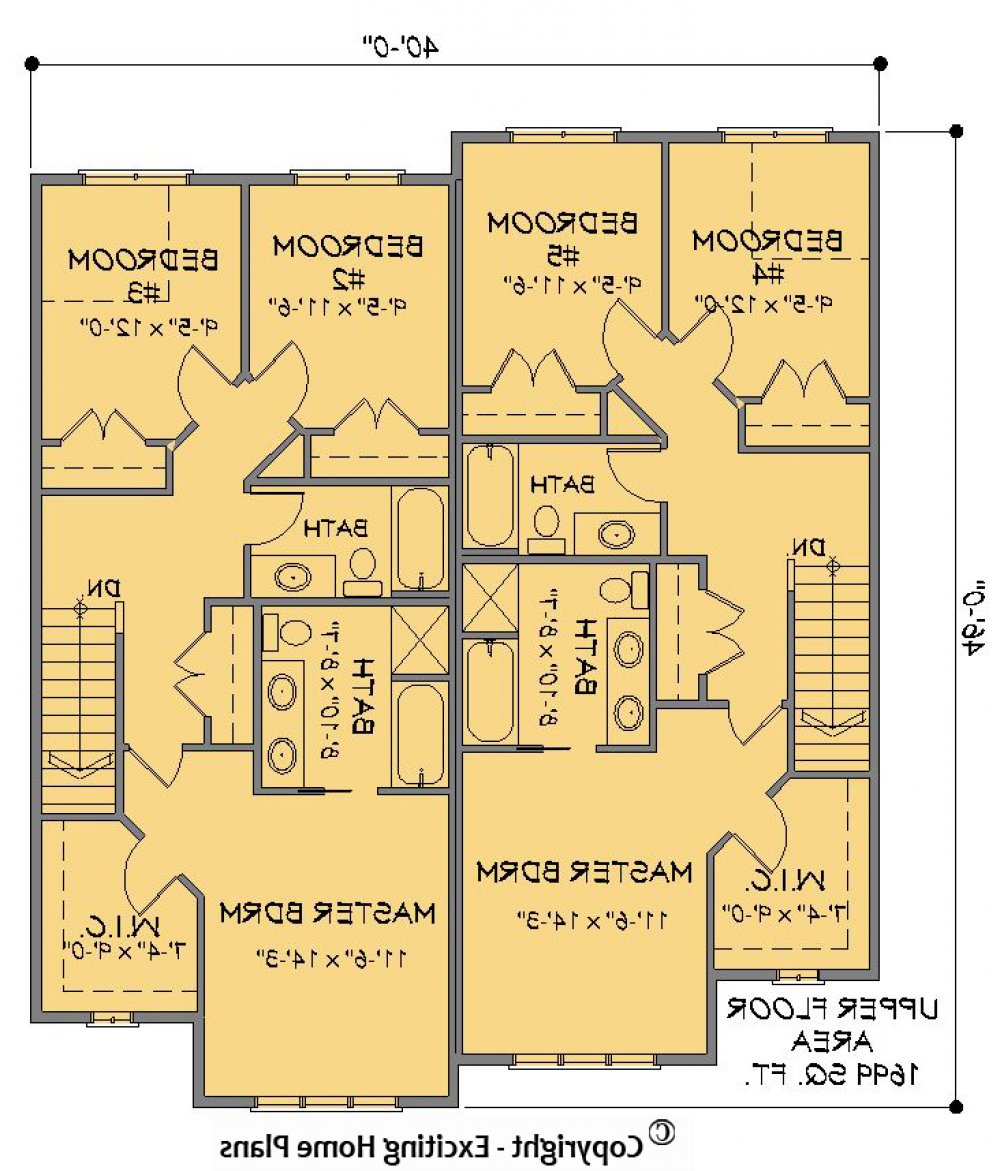

• Upper Floor Sq Ft:
• 1700
• House Width (Ft):
• 40
• House Depth (Ft):
• 47

Room Details

• MULTIFAMILY UNITS:
• ROOM SIZES NOTED HERE ARE PER EACH INDIVIDUAL UNIT
• Kitchen:
• 9'-0 X 7'-2 Main
• Dining Room:
• 9'-10 X 14'-0 Main
• Living Room:
• 1 Main
• Office / Library:
• 13'-2 X 12'-6 Main
• Laundry:
• 5'-8 X 6'-0 Main
• Utility / Storage Room:
• 6'-2 X 5'-0 Main
• Master Bedroom:
• 11'-6 X 14'-3 Upper
• Bedroom 2:
• 9'-5 X 11'-6 Upper
• Bedroom 3:
• 9'-5 X 12'-0 Upper
• All Bedrooms Have A Bathroom:
• No
• Master Bathroom:
• 8'-10 X 8'-7 Upper
• Bathroom 2:
• 9'-4 X 5'-4 Upper

Kitchen Options

• Kithen Island:
• Yes
• Open Plan:
• Yes

Living Style Options

• Great Room Concept / Open Plan:
• Yes

Interior Details

• Great Living Room Fireplace:
• Yes
• Steam Room:
• No
• Skylight(s):
• No
• Hot Tub:
• No
• Sauna:
• No

Master Bedroom Options

• Pieces In Ensuite:
• 5
• Sitting Area:
• 1
• Walk-In Closet:
• 1

Ceiling Options

• Main Floor Ceiling Height:
• 9
• Upper Floor Ceiling Height:
• 9

Lot Details

• Flat Lot (Less Than 36" Slope):
• Yes
• View To Rear:
• Yes

Construction Details

• Framing Lumber:
• 2x6
• Roof:
• Asphalt
• Foundation:
• Slab on grade
• Wall Finish:
• Siding
• Wall Finish:
• Stone

Suite Options

• Suites:
• 2
• Kitchen:
• Yes
• Dining Room:
• Yes
• Living Room:
• Yes
• 3 Bedroom:
• Yes
• Ensuite:
• Yes
• Laundry Facilities:
• Yes
• Garage Entrance:
• Yes
• Separate Exterior Entry:
• Yes
• Exterior Deck:
• Yes
• 3 Bathrooms:
• Yes

Plan Permit Info

Plan Costs

• Planbook 5 Print Sets 24x36 - ¼" Scale Copies:
• $1,250.00

• Planbook 8 Print Sets 24x36 - ¼" Scale Copies:
• $1,500.00

• Planbook purchase with PDF's:
• $1,750.00
• Extra 24x36 ¼" Scale Copies:
• $65.00
• Reverse Plan:
• $300.00
• Colour Rendering:
• $150.00
• 11" x 17" - 1/8" Scale Copy:
• $25.00
• Shipping within B.C.
• $29.95
• Shipping within Canada:
• $50.00
• Shipping to USA:
• Please Ask For Quote
• Shipping outside of North America:
• Please Ask For Quote
• Shipping Mounted Renderings:
• Please Ask For Quote
