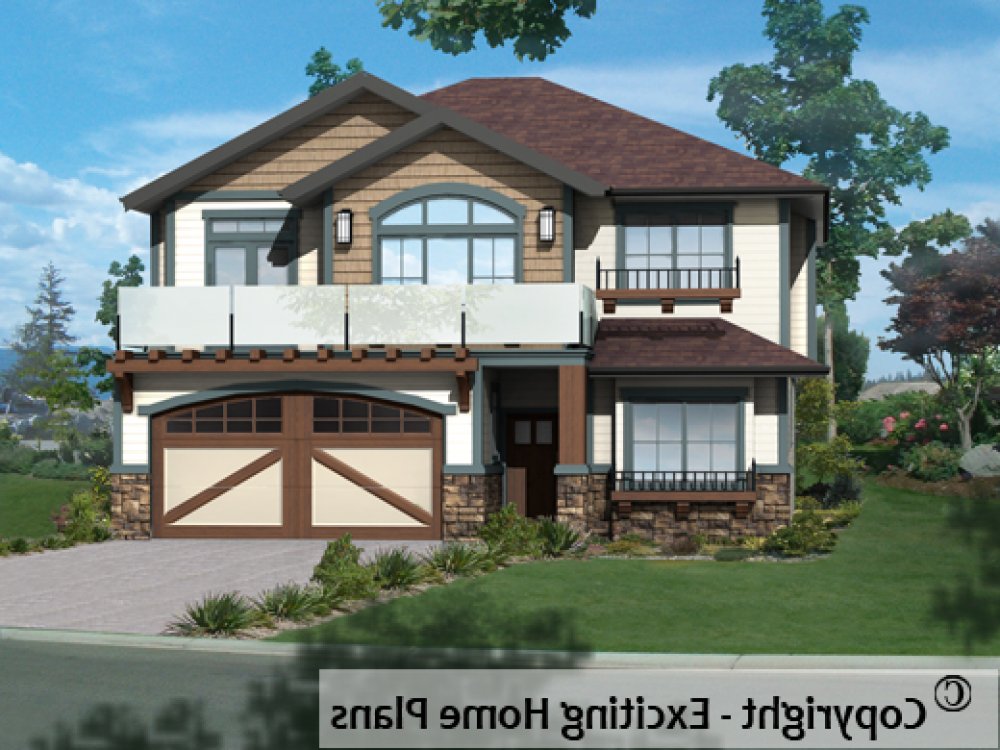

Monashee IV (E1289-10)
Standard
Plan
Plan
Click thumbnails to see larger image below
Plan in
Reverse
Reverse
ORDER THIS HOUSE PLAN RELATED HOUSE PLANS
Floor Plan Details
- Total Bedrooms:
- 5
- # of Bedrooms on Main Floor:
- 3
- Bathrooms:
- 3
- Half Bathrooms:
- 1
- Main Floor Sq Ft:
- 1338
- Basement Sq Ft:
- 1053
- House Width (Ft):
- 36
- House Depth (Ft):
- 54
Room Details
- Great Room:
- 13'-2 X 14'-6 Main
- Kitchen:
- 13'-0 X 12'-8 Main
- Dining Room:
- 9'-8 X 11'-0 Main
- Laundry:
- 4'-8 X 5'-0 Basement
- Utility / Storage Room:
- 4'-8 X 3'-6 Basement
- Deck / Patio 1:
- 24'-10 X 7'-8
- Deck / Patio 2:
- 9'-8 X 17'-2 Main
- In-law Suite:
- 17'-4 X 11'-6 Basement
- Master Bedroom:
- 13'-0 X 12'-4 Main
- Bedroom 2:
- 11'-8 X 10'-2 Main
- Bedroom 3:
- 11'-8 X 10'-2 Main
- Bedroom 4:
- 12'-4 X 10'-4 Basement
- Bedroom 5:
- 12'-0 X 12'-2 Basement
- All Bedrooms Have A Bathroom:
- No
- Master Bathroom:
- 9'-4 X 9'-4 Main
- Bathroom 2:
- 9'-6 X 5'-0 Main
- Bathroom 3:
- 8'-6 X 5'-0 Basement
Kitchen Options
- Kithen Island:
- Yes
- Eating Bar:
- Yes
- Walk Through Pantry:
- Yes
- Access To Deck:
- Yes
- Pantry:
- Yes
- Open Plan:
- Yes
Interior Details
- Great Living Room Fireplace:
- Yes
- Steam Room:
- No
- Skylight(s):
- No
- Hot Tub:
- No
- Sauna:
- No
Master Bedroom Options
- Pieces In Ensuite:
- 4
- Walk-In Closet:
- 1
Garage Options
- Garage Size:
- 19'-0 X 22'-4
- Number of Vehicles:
- 2
- Front Load:
- Yes
Ceiling Options
- Main Floor Ceiling Height:
- 9
- Basement Ceiling Height:
- 9
Lot Details
- Flat Lot (Less Than 36" Slope):
- Yes
- View To Street Side:
- Yes
Construction Details
- Framing Lumber:
- 2x6
- Roof:
- Asphalt
- Foundation:
- Slab on grade
- Wall Finish:
- Siding
- Wall Finish:
- Stone
- Wall Finish:
- Wood Shingle
Suite Options
- Suites:
- 1
- Kitchen:
- Yes
- Dining Room:
- Yes
- 1 Bedroom:
- Yes
- Laundry Facilities:
- Yes
- Exterior Patio:
- Yes
Plan Permit Info
Plan Costs
- Planbook 5 Print Sets 24x36 - ¼" Scale Copies:
- $969.00
- Planbook 8 Print Sets 24x36 - ¼" Scale Copies:
- $1,089.00
- Planbook purchase with PDF's:
- $1,389.00
- Extra 24x36 ¼" Scale Copies:
- $40.00
- Reverse Plan:
- $299.00
- Colour Rendering:
- $79.00
- 11" x 17" - 1/8" Scale Copy:
- $20.00
- Shipping within B.C.
- $29.95
- Shipping within Canada:
- $50.00
- Shipping to USA:
- Please Ask For Quote
- Shipping outside of North America:
- Please Ask For Quote
- Shipping Mounted Renderings:
- Please Ask For Quote
